EAN код | 8595568940650 |
Митний код | 83024190 |
Вага | 0,3298 kg/шт |
Покриття | Magnelis® |
Максимальне навантаження | 130 kg |
Розмір А | 270 mm |
Розмір В | 64 mm |
Для ширини лотка | 250 mm |
Для висоти лотка | 35 - 110 mm |

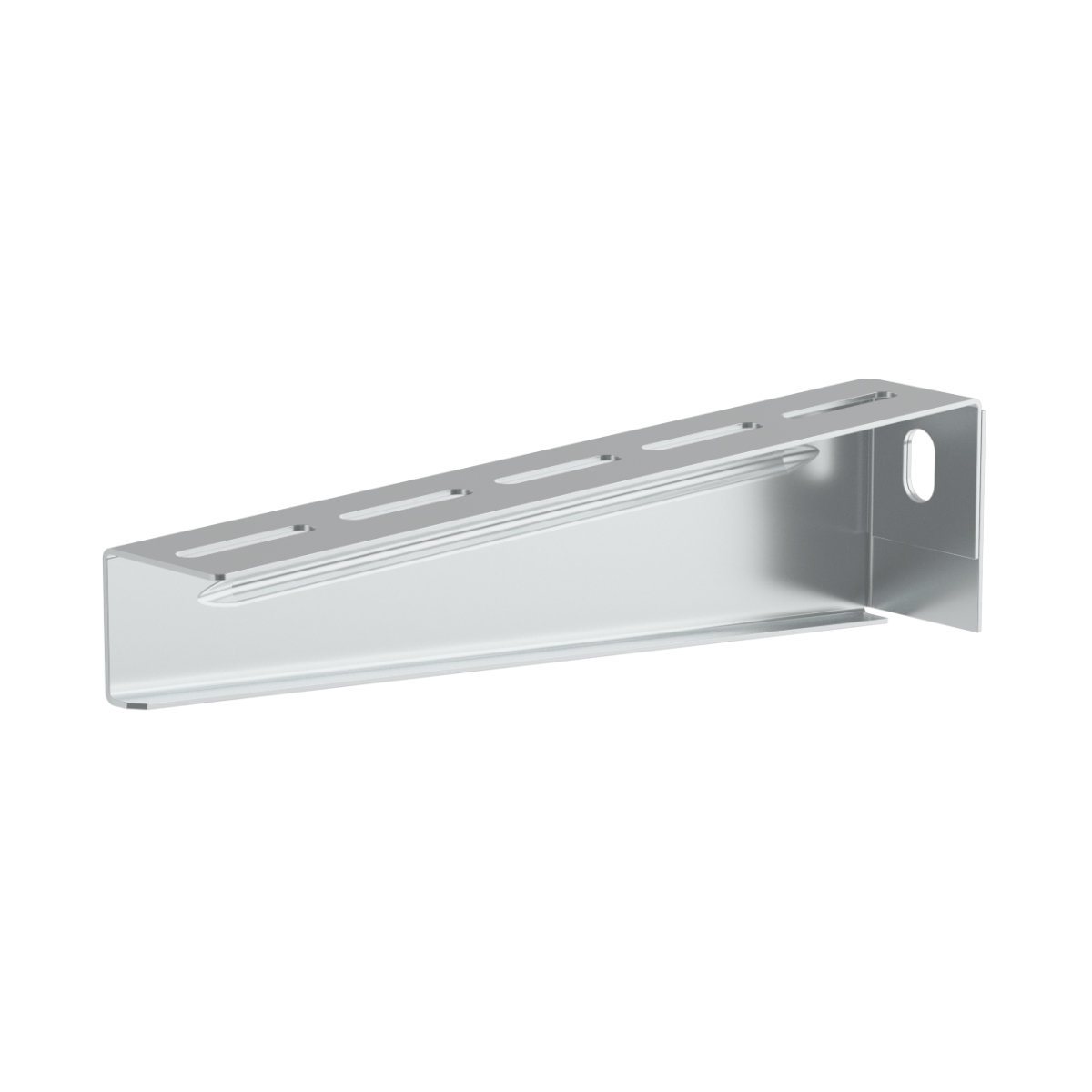

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
